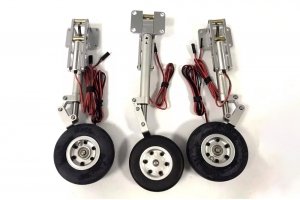

JP Hobby ER-150 Full Set (F4U Corsair 2.7m or P40 or similar) + Controller

Manual Video Spare Parts Electric Retract ER-150 (F4U Corsair 2.7m or P40) > Model Weight: until 20kg > Struts diameter: 18 mm > Struts diameter for mounting on retracts: 10mm > Angle: 90° > Main Gear Rotation direction: 2x Inside (jack side) > Tail Rotation direction: 1x Inside (jack side) > Mounting: 2x Low + 1x Vertical > Wheels: 2x 95mm + 1x 50mm (tail wheel) (40 to 55 possible) Serial JP Hobby ER-150 (20kg) Strut(s) Diameter(s) (mm): 18 Wheel(s) axle(s) diameter(s) (mm) 8, 5 Weight (gr): 1095gr Max weight Up to 20kg Torque 12kg/cm Rotation angle 90° Rotation direction Inside (jack side) Working voltage (Volts): 7.4 to 8.4v (2s LiPo) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: mechanic Wheels: ball bearings mounted For planes up to 20kg Tail wheel retractable system with steering Technical Specifications Struts diameter: 18mm Struts diameter for mounting on retracts: 10mm Wheel axle diameter: 8mm (main gear) 4mm (tail) Main gears wheels diameter: 95mm Tail gear wheel diameter: 50mm (40 to 55mm possible) Weight: 1095gr Dimensions: for detailed dimensions, please refer to the pictures Working voltage: 7.4-8.4V Content 2x Scale metal struts for main landing gear equiped with 95mm 90° rotating wheels 1x metal strut for tail gear equiped with 50mm wheel and steering 3x Electric Retracts JP Hobby (ER-150 for main gear and tail wheel) 1x Integrated V1 sequencer for gears and doors Requires 2 cells battery (if used with HV sequencer – recommended – if you don't use the flight battery to power it) Tail direction servo
