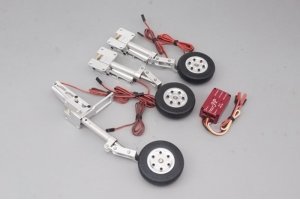

JP Hobby ER-200 main struts full set with brakes (Baja Hobby JMT L-39 3.3m) + Controller

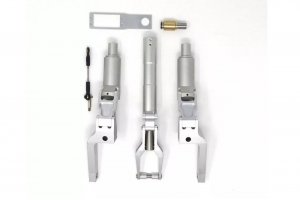

Manual Video Spare Parts Electric Main Retract ER-200 > Model Weight: until 30kg > Struts diameter: 27mm > Angle: 2x 90 degrees > Rotation direction: 2x Outside (opposite jack side) > Mouting: 2x Low > Wheels: 2x 115mm (4" 1/2) (with brakes) Serial JP Hobby ER-200 (30kg) Strut(s) Diameter(s) (mm): 27 Wheel(s) axle(s) diameter(s) (mm) 8 Weight (gr): 1691 gr Max weight Up to 30kg Torque 15kg/cm Rotation angle 90° Rotation direction Outside (opposite jack) Working voltage (Volts): 7.4 to 8.4v (2s LiPo) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: mechanical Wheels: ball bearings mounted For planes up to 30kg Technical Specifications Struts diameter: 27mm Wheel axle diameter: 8mm Main gears wheels diameter: 115mm (4"1/2) Weight: 1691g (2 struts, 2 retracts, wheels and 2 modules) Dimensions: for detailed dimensions, please refer to the pictures Working voltage: 7.4-8.4V Brake voltage: 7.2-30V Content 2x Scale metal struts for main landing gear equiped with 115mm (4"1/2) wheels & brakes system 2x Electric Retract JP Hobby ER-200 15mm (30kg/Low/Outside) 1x Electronic brake system control module Requires JP Hobby sequencer (option to be selected on this page – V1 or V2 version as your choice) Please pay attention that only JP Hobby sequencers are qualify to work in accordance of the JP Hobby products. 2 cells battery (if used with HV sequencer -recommended- or for the brakes if you don't use the flight battery to power them)
