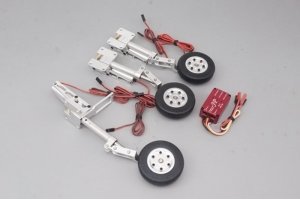

JP Hobby ER-150S Tricycle Full Set with Brakes (Sebart Avanti S, S FC, ACE Viper, Krill Ares 2.2) + Controller

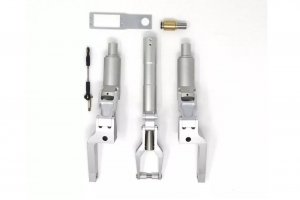

Manual Video Spare Parts Electric Retract ER-150S > Model Weight: until 20kg > Struts diameter: 18mm > Retracts mounting diameter: 13mm (main) 15mm (nose) > Angle: 3x 90 degrees > Rotation direction: 3x Outside (opposite jack side) > Mounting: 3x Low > Wheels: 2x 86mm (with brakes) + 1x 63mm Serial JP Hobby ER-150 (20kg) Strut(s) Diameter(s) (mm): 18 Wheel(s) axle(s) diameter(s) (mm) 8, 6 Weight (gr): 1484 Max weight Up to 20kg Rotation angle 90° Rotation direction Ouside (opposite jack)(nose retract) Working voltage (Volts): 7.4 to 8.4v (2s LiPo) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: mecanical Wheels: ball bearings mounted For planes up to 20kg Linkage for nose gear Technical Specifications Struts diameter: 18mm Diameter for retracts mounting: 15mm Wheel axle diameter: 8mm (main gear) 6mm (nose wheel) Main gears wheels diameter: 83mm Nose gear wheel diameter: 63mm Weight: 1484g (for the complete set including the struts, retracts, wheels and the 2 modules) Dimensions: for detailed dimensions, please refer to the pictures Working voltage: 7.4-8.4V Content 2x Scale metal struts for main landing gear equiped with 86mm wheels & brakes system 1x Scale metal strut for nose gear equiped with 63mm wheel and linkage 2x Electric Retracts JP Hobby ER-150S 13mm (20kg/Low/Outside) 1x Electric Nose Retract JP Hobby ER-150S 15mm (20kg/Low/Outside) 1x Electronic brake system control module Requires JP Hobby sequencer (option to be selected on this page – V2 controller is required for designated models) Please pay attention that only JP Hobby sequencers are qualify to work in accordance of the JP Hobby products. 2 cells battery Nose direction servo (option available on this page). Servo size for steering nose wheel : 40x 20x 37mm size with 3.8 to 8kg torque such as the KST MS1035 (not included)
