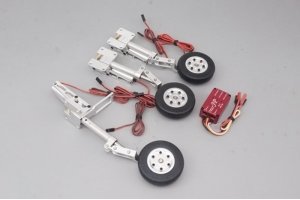

JP Hobby ER-280 Full Set with Brakes (Aviation Jet Boeing T-X/T-7A or F-16 1:5 or similar) + Sequencer

Manual Video Spare Parts Electric Retract ER-280 F-16 1:5 > Model Weight: until 30kg > Struts diameter: na > Angle: 3x 90 degrees > Rotation direction: 2x Inside (jack side) + 1x Outside (opposite jack side) > Mounting: Low (below support) > Wheels: 2x 136mm)(with brakes) + 1x 75mm (115mm and 70mm version is possible) Serial JP Hobby ER-200 (30kg) Wheel(s) axle(s) diameter(s) (mm) 8, 5 Max weight Up to 30kg Torque 15kg/cm Rotation direction Inside (jack side), Ouside (opposite jack)(nose retract) Working voltage (Volts): 7.4 to 8.4v (2s LiPo) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: mechanic Wheels: ball bearings mounted For planes up to 30kg Linkage for nose gear 2 LED projectors Technical Specifications Struts diameter: na Wheel axle diameter: 8mm (main gear) 6mm (nose) Main gears wheels diameter: 136mm (115mm version is possible) Nose gear wheel diameter: 75mm (70mm version is possible please ask us) Weight: na Dimensions: for detailed dimensions, please refer to the pictures Working voltage: 7.4-8.4V Content 2x Scale metal struts for main landing gear equiped with 136mm wheels & brakes system 1x Scale metal strut for nose gear equiped with 75mm wheel and linkage 2x Electric Retracts motors JP Hobby ER-280 1x Electric Retract motor JP Hobby ER-150 (nose gear) 1x Electrical Magnetic Brake Controller system ALF 1x Multifunction Landing Gears and Doors Sequencer 2x LED projectors Requires 2 cells battery Nose direction servo
