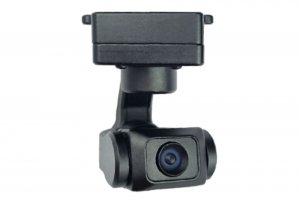

30x 2MP EOIR Sensor gimbal stabilizer camera UAV

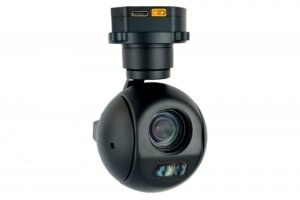

Manual Video Spare Parts Q30TIR-50 is a powerful 3-axis gimbal camera which integrates a 30x optical zoom SONY camera and a 640×480 thermal camera. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. Detecting by heat source, the 50mm thermal can reveal the damage of buildings, fire spark in forest, the location of people or animal and more. It's widely used in day and night surveillance, search, inspection and firefighting. Dimensions Specifications Hardware Parameter Working voltage 12V Input voltage 3S ~ 6S Output voltage 5V (connect with PWM) Dynamic current 900mA @ 12V Idle current 750mA @ 12V Working environment temp. -20? ~ +60? Output micro HDMI(1080P 60fps) / IP (720p) / SDI (1080P 30fps) Local-storage TF card (Up to 128G, class 10, FAT32 or ex FAT format) Picture storage format in TF card JPG(1920*1080) Video storage format in TF card MP4 (1080P/720P 25fps/30fps) Control method PWM / TTL / S.BUS / TCP(IP output) Gimbal Spec Angle range of structure design Pitch/Tilt: -40°?110°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP / SDI output version) Angle range of software design Pitch/Tilt: -30°?90°, Yaw/Pan: ±290° / ±360°*N (IP / SDI output version) Vibration angle Pitch/Roll: ±0.02°, Yaw?±0.02° One-key to center √ Camera spec Imager Sensor SONY 1/2.8" "Exmor R" CMOS Picture quality Full HD 1080 (1920*1080) Effective pixel 2.13MP Lens optical zoom 30x, F=4.3~129mm Digital zoom 12x (360x with optical zoom) Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) 720p mode: 63.7°(wide end) ~ 2.3°(tele end) SD: 47.8°(wide end) ~ 1.7°(tele end) Sync system Internal S/N ratio more than 50dB Min illumination Color 0.01lux@F1.6 Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/ Auto/Outdoor Auto) Shutter speed 1/1s to 1/10,000s, 22 steps Backlight compensation Yes Aperture control 16 steps Defog Yes OSD Yes Camera Object Tracking Update rate of deviation pixel 50Hz Output delay of deviation pixel 5ms Minimum object contrast 5% SNR 4 Minimum object size 32*32 pixel Maximum object size 128*128 pixel Tracking speed 32 pixel/frame Object memory time 100 frames (4s) The mean square root values of pulse noise in the object position < 0.5 pixel Thermal Imager Spec Lens size 50mm Horizontal FOV 12.4 Vertical FOV 9.3 Diagonal FOV 15.5 Detective Distance (Man: 1.8×0.5m) 1471 meters Recognize Distance (Man: 1.8×0.5m) 368 meters Verified Distance (Man: 1.8×0.5m) 184 meters Detective Distance (Car: 4.2×1.8m) 4510 meters Recognize Distance (Car: 4.2×1.8m) 1127 meters Verified Distance (Car: 4.2×1.8m) 564 meters Working mode Uncooled long wave (8μm~14μm) thermal imager Detector pixel 640*480 Pixel size 17μm Focusing method Athermal prime lens Emissivity correction 0.01~1 NETD ≤60mK (@25?) MRTD ≤650mK (@characteristic frequency) Image enhancement Auto adjust image brightness and contrast ratio Color palette White, iron red, pseudo color Auto Non-uniform correction Yes (no shutter) Digital zoom 1x ~ 4x Sync correct time Yes Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) Temperature warning 0?~120? (For thermometry version only) Thermal Imager Object Tracking Update rate of deviation pixel 50Hz Output delay of deviation pixel 5ms Minimum object size 32*32 pixel Maximum object size 128*128 pixel Tracking speed 32 pixel/frame Object memory time 100 frames (4s) Packing Information N.W. 1325g /1395g (Viewport version) Product meas. 127.6*164.5*173.5mm Accessories 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion
