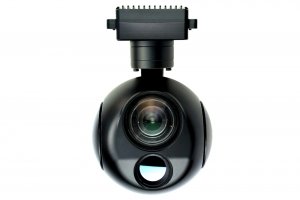

36x starlight object tracking gimbal stabilizer UAV

Manual Video Spare Parts drone camera gimbal Z36T gimbal camera for DJI features a 36x optical zoom lens. It powered by 1/1.9″ CMOS module, with 0.005lux(@)F1.5 starlight level min illumination, 2.38 mega effective pixels, fast auto-focus speed, 1080p HD image quality, combined with 36x advanced optical zoom technology, designed for UAV aerial photography. At the same time, Z36T can achieve target tracking. All the parameters have been perfectly set, you just need to install the gimbal camera to UAV, then Ready to fly.The gimbal can be controlled in three directions: YAW, ROLL and PITCH, We use FOC solution can greatly compensate the vibration of UAV. The image is very stable even at 36 times optical zoom. Working voltage 12v Pitch/Tilt ±90° Output Micro HDMI(HD 1080P 60fps) Roll ±85° Local storage SD card up to 128G Yaw/Pan ±170° Power consumption ≤6.6w Warranty 1 years Item Name Starlight gimbals camera Image sensor 1/1.9″CMOS Control method PWM/TTL/S.BUS MOQ 1 Piece Model Number Z36T N.W. 945G Input voltage 4S~6S Package meas 360*300*250mm Advantages * Highly competitive cost * DJI’s strategic partner * Leading in the field for UAV payload of advanced technology. * Certified by CE/ROHS authoritative institution. Specifications Hardware Parameter Working voltage 12V Input voltage 3S ~ 6S Output voltage 5V (connect with PWM) Dynamic current 550mA @ 12V Idle current 450mA @ 12V Power consumption ≤ 6.6W Working environment temp. -20? ~ +60? Output micro HDMI(HD output 1080P 60fps)/IP (720p) Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format) Control method PWM / TTL / S.BUS/TCP( IP output version) Gimbal Spec Mechanical Range Pitch/Tilt: ±120°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version) Controllable Range Pitch/Tilt: -45°?90°, Yaw/Pan: ±290° / ±360°*N (IP / SDI output version) Vibration angle Pitch/Roll: ±0.02°, Yaw?±0.02° One-key to center √ Camera Spec Imager Sensor 1/2" Sony IMX385LQR-C CMOS Sensor Picture quality Full HD 1080 (1920*1080) Effective pixel 2.13M pixels Lens optical zoom 36x, F= 6.0mm ~ 216.0mm Digital zoom Digital x32 Zoom Min object distance 8.5mm(wide end) to 1200mm(tele end). Default 300mm Field of View H: Wide 56.5°, Tele 2.44° ± 5% V: Wide 34.58°, Tele 1.99° ± 5% Sync system Progressive scanning S/N ratio more than 52dB Min illumination Color 0.005lux@F1.5, Black&white 0.0005lux@F1.5, Starlight level Gain Auto White balance Multi modes Shutter speed 1/1s to 1/10,000s, 22 steps Backlight compensation Yes Aperture control 16 steps Defog Yes OSD Yes Camera Object Tracking Update rate of deviation pixel 50Hz Output delay of deviation pixel <10ms Minimum object contrast 5% SNR 4 Minimum object size 32*32 pixel Maximum object size 128*128 pixel Tracking speed ±48 ~ ±192 pixel/frame Object memory time 100 frames (4s) The mean square root values of pulse noise in the object position < 0.5 pixel Packing Information N.W. 945g Product meas. 105.3*188*151.5mm Accessories 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion G.W. 3127g Package meas. 360*300*250mm
