ADTi 45MP 45PRO Surveyor Drone Mapping Cameras THAI

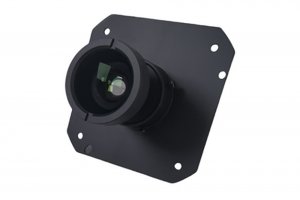

Manual Video Spare Parts PRODUCT INFO The ADTi 45PRO camera module is an ADTI self-developed 45MP full frame camera module, it adopts the Sony IMX 366 back-illuminated 45MP full frame image sensor , also drive control circuit and image processing algorithm. It can open the SDK control protocol to users. ADTi customize and develop surveying and mapping lenses of various focal lengths, and customized the mechanical global intermirror shutter with higher reliability. also features: Full frame Sony CMOS back-illuminated sensor. mechanical shutter combined with fixed focus lenses. Built-in Multi-Interface hot shoe output for PPK Directly Geo-tagging function with Pixhawk (need ADTI POS &CTRL unit) full aluminum structure Ethernet Port for live video stream 45PRO Camera consists of Sony IMX366 sensor with Socionext Imaging processor-Milbeaut®, which capture high quality images, with low heatup. For directly getagging from Pixhawk flight controller, you will need to purchase the ADTI POS&CTRL unit separately. CAMERA SPECIFICATIONS Sensor Type:CMOS Sensor Manufacturer:Sony Sensor model: Sony IMX 366 back-illuminated Effective Megapixels:44.7 Sensor Format:full frame Sensor size:876mm2 (36.5*24mm) , 8192 x 5460 Pixel Type:4.4 μm (H) × 4.4 μm (V) Aspect Ratio:3:2 Expo interval: ≥0.5s Image Capture Image Resolution: 8192 x 5460(45 MP, 3:2) Image File Format:JPEG Shutter: Shutter Type: Lightweight inter-mirror mechanical, replaceable Shutter speed: 1/100 to 1/10000 Continuous-mode frames/second:2.0 Expo interval: ≥0.5s Video Capture Video Resolution: 1920×1080 (60p(28Mbps) 640×480 (30p(3Mbps)) Video File Format: MP4 HD Video Out:Yes HD Video Connection:HDMI Lens & Optics 21mm fixed lens: Manual fixed focus (ortho)NON-interchangeable FOV: D 92° H 81° V 60° distortion<0.3% Auto Focus No Manual Focus Yes Focusing range: 50 meters to infinity Aperture fixed F5.6 40mm fixed lens: Manual fixed focus (ortho)NON-interchangeable 52mm equivalent Focal Length FOV: D 57° H 48.6° V 33.4° distortion<0.037% Auto Focus No Manual Focus Yes Focusing range: 50 meters to infinity Aperture fixed F5.6 56mm fixed lens: Manual fixed focus (ortho)NON-interchangeable 24.5mm equivalent Focal Length FOV: D 42.2° H 35.6° V 24.3° distortion<0.3% Auto Focus No Manual Focus Yes Focusing range: 50 meters to infinity Aperture fixed F5.6 Camera Camera Size: 7.2*6.8*10.6 cm Weight with lens: 270 g (21MM lens), 180g (40MM or 56MM lens) Package Size: 14.5*10*6 cm Package Weight: 800 g Power: 12-28V DC Lipo or Liion Operating Temperature: -10 to 40°C
