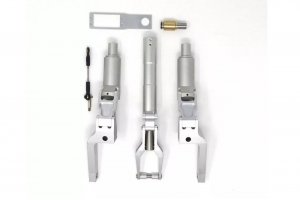

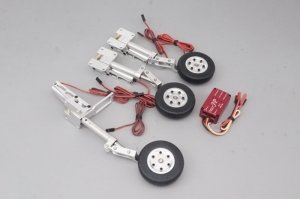

JP Hobby ER-005 V2 tricycle complete set with brakes (Sebart L-39 and MB-339) + controller

Manual Video Spare Parts More resistant V2 version > Model Weight: until 6kg > Struts diameter: 10mm – Pin Diameter Size: 5mm > Angle: 3x 90 degrees > Rotation direction: 3x Inside (jack side) > Mounting: 3x Low (above of support) > Wheels: 2x 50mm (with brakes) + 1x 40mm (45mm on demand) DATA SHEET Serial JP Hobby ER-005 (6kg) Mounting diameter (mm): 5 Strut(s) Diameter(s) (mm): 10 Wheel(s) axle(s) diameter(s) (mm) 4 Weight (gr): 507 Max weight Up to 6kg Torque 12kg/cm Rotation angle 90° Rotation direction Inside (jack side) Working voltage (Volts): 5 to 6.4v Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: mechanical Wheels: ball bearings mounted For planes up to: 6kg (7-8kg possible) Linkage for Outward/Return cable control (steel cable not included) Technical Specifications Struts diameter: 10mm Mounting Struts diameter: Drilling 5mm Wheel axle diameter: 4mm Main gear wheels diameter: 50mm Nose gear wheel diameter: 40mm (45mm on demand) Weight: 507g (for the complete set including the 3 struts, 3 retracts, wheels, the controller and module) Dimensions: for detailed dimensions, please refer to the pictures Working voltage: 5-6V Content 2x Scale metal struts for main landing gear equiped with 50mm wheels & brakes system 1x Scale metal strut for nose gear equiped with 40mm wheel and Linkage 3x Electric Retracts JP Hobby ER-005 5mm (6Kg/Low/Inside) 1x JP Hobby ER-120 V2 version Controller Retract box (doors closed when the gear is down) 1x JP Hobby Electronic brake system control module
