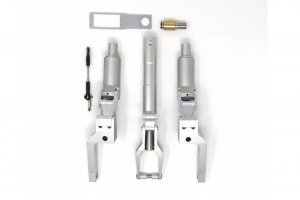

JP Hobby ER-120 Tricycle Full Set with Brakes (Black Horse Viper Jet MKII 1.88m) + Controller

Manual Video Spare Parts Electric Retract ER-120 (Black Horse Viper Jet MKII 1.88m) > Model Weight: until 12kg > Struts diameter: 12mm > Angle: 3x 90 degrees > Rotation direction: 3x Inside (jack side) > Mounting: 3x Low > Wheels: 2x 65mm (with brakes) + 1x 55mm Serial JP Hobby ER-120 (12kg) Strut(s) Diameter(s) (mm): 12 Wheel(s) axle(s) diameter(s) (mm) 5 Weight (gr): 690 gr Max weight Up to 12kg Torque 12kg/cm Rotation direction Inside (jack side) Working voltage (Volts): 5 to 8.4v (2s LiPo recommended) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: mechanical Wheels: ball bearings mounted For planes up to 12kg Linkage for Outward/Return cable control (steel cable not included) Technical Specifications Struts diameter: 12mm Main gear wheels diameter: 65mm Nose gear wheel diameter: 55mm Wheels axle diameter: 5mm Weight: 690g (for the complete set including the struts, retracts, wheels and the controller) Dimensions: for detailed dimensions, please refer to the pictures Working voltage: 5-8.4V (2S LiPo) Brakes working voltage: 7.2-30V Content 2x Scale metal struts for main landing gear equiped with 65mm wheels & brakes system 1x Scale metal strut for nose gear equiped with 55mm wheel and linkage 3x Electric Retracts JP Hobby ER-120 12mm (12kg/Low/Inside) 1x JP Hobby ER-120 V1 version All Integrated controller retract box (doors opened when the gear is down) Requires 2 cells battery
