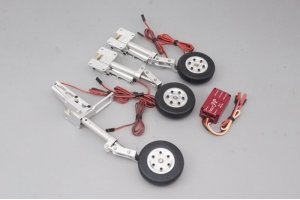

JP Hobby ER-150 Full Set with Brakes (JMB Boeing T-X/T-7A 1.34m) + Controller

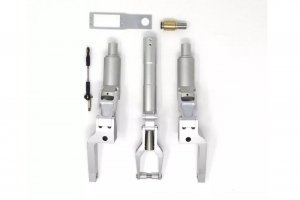

Manual Video Spare Parts Electric Retract ER-150 > Model Weight: until 12kg > Struts diameter: na > Angle: Specific > Rotation direction: 2x Inside (jack side) + 1x Outside (opposite jack side) > Mounting: Low (below support) > Wheels: 2x 3''1/4 (82.5mm)(with brakes) + 1x 70mm Serial JP Hobby ER-150 (20kg) Wheel(s) axle(s) diameter(s) (mm) 8, 5 Weight (gr): 1090 Max weight Up to 12kg Torque 12kg/cm Rotation angle 90° Rotation direction Inside (jack side), Ouside (opposite jack)(nose retract) Working voltage (Volts): 7.4 to 8.4v (2s LiPo) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: mechanic Wheels: ball bearings mounted For planes up to 12kg Linkage for nose gear Technical Specifications Struts diameter: na Wheel axle diameter: 8mm (main gear) 6mm (nose) Main gears wheels diameter: 3''1/4 (82.5mm) Nose gear wheel diameter: 70mm Weight: 1090g (for the complete set including the struts, retracts, wheels and the sequencer) Dimensions: for detailed dimensions, please refer to the pictures Working voltage: 7.4-8.4V Content 2x Scale metal struts for main landing gear equiped with 82.5mm wheels & brakes system 1x Scale metal strut for nose gear equiped with 70mm wheel and linkage 2x Electric Retracts motors JP Hobby ER-150 (main gear) 1x Electric Retracts motors JP Hobby ER-120 (nose gear) 1x Integrated V1 sequencer for gears and doors and brakes Requires 2 cells battery Nose direction servo
