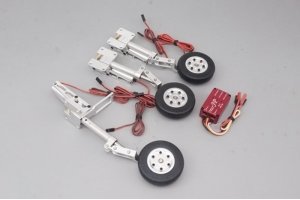

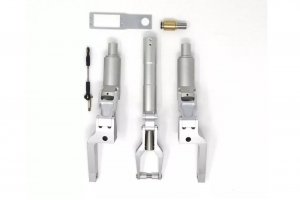

JP Hobby ER-150 Tricycle Full Set with Brakes (JSM Xcalibur Plus Ripmax 2.3m) + Controller

Manual Video Spare Parts Electric Retract ER-150 (JSM Xcalibur Plus Ripmax 2.3m) > Model weight: until 20kg > Struts diameter: 18mm (Main) – 16mm (Front) > Mounting diameter: 15mm > Angle: 3x 90 degrees > Rotation direction: 3x Inside (Jack side) > Mounting: 3x Low > Wheels: 2x 82.5mm (with brakes) + 1x 63mm Serial JP Hobby ER-150 (20kg) Mounting diameter (mm): 15 Strut(s) Diameter(s) (mm): 18mm (main) – 16mm (front) Wheel(s) axle(s) diameter(s) (mm) 8mm (main) – 5mm (front) Weight (gr): 1308g Max weight Up to 20kg Rotation angle 90° Rotation direction Inside (jack side) Working voltage (Volts): 7.4 to 8.4v (2s LiPo) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: mechanical Wheels: ball bearings mounted For planes up to 20kg Linkage for Outward/Return cable control (steel cable not included) Technical Specifications Main struts diameter: 18mm Front strut diameter: 16mm Mounting Struts diameter: 15mm Main gear wheels diameter: 82.5mm Nose gear wheel diameter: 63mm Wheels axle diameter: 8mm (Main) – 5mm (Front) Weight: 1308g (for the complete set including the 3 struts, 3 retracts, wheels and the controller) Dimensions: for detailed dimensions, please refer to the pictures Working voltage: 7.4-8.4V (2S LiPo) Brakes working voltage: 7.2-30V Content 2x Scale metal struts for main landing gear equiped with 82.5mm wheels & brakes system 1x Scale metal strut for nose gear equiped with 63mm wheel and linkage 3x Electric Retracts JP Hobby ER-150 15mm (20kg/Low/Inside) 1x JP Hobby ER-150 V1 version All Integrated controller retract box (doors opened when the gear is down) Requires 2 cells battery
