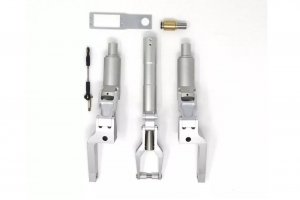

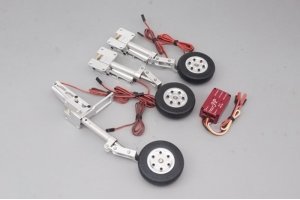

JP Hobby ER-200 Full Set with Brakes (T-One T3 2.62m) + Controller

Manual Video Spare Parts Electric Retract ER-200 > Model Weight: until 30kg > Main gear struts diameter: 27mm > Nose gear strut diameter: 22mm > Retracts mounting diameter: 15mm > Angle: 3x 90 degrees > Rotation direction: 3x Outside (opposite jack side) > Mounting: 3x Low > Wheels: 2x 115mm (4"1/2) (with brakes) + 1x 75mm Serial JP Hobby ER-200 (30kg) Strut(s) Diameter(s) (mm): 27mm (Main) – 22mm (Front) Wheel(s) axle(s) diameter(s) (mm) 8mm (Main) – 6mm (Front) Weight (gr): 2370 gr Max weight Up to 30kg Torque 15kg/cm Rotation direction Outside (opposite jack) Working voltage (Volts): 7.4 to 8.4v (2s LiPo) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: mechanic Wheels: ball bearings mounted For planes up to 30kg Servo plate with control for threaded rod and ball joints Technical Specifications Main gear struts diameter: 27mm Nose gear strut diameter: 22mm Wheel axle diameter: 8mm (main gear) – 6mm (nose gear) Main gears wheels diameter: 115mm (4"1/2) Nose gear wheel diameter: 75mm Weight: 2370g (for the complete set including the 3 struts, 3 retracts, wheels and the sequencer and controller) Dimensions: for detailed dimensions, please refer to the pictures Working voltage: 7.4-8.4V (2S LiPo) Brake working voltage: 7.2-30V Content 2x Scale metal struts for main landing gear equiped with 115mm (4"1/2) wheels & brakes system 1x Scale metal strut for nose gear equiped with 75mm wheel and support servo 3x Electric Retracts JP Hobby ER-200 (30kg/Low/Outside) 1x JP Hobby multifunction landing gears and doors sequencer 1x JP Hobby Electrical Magnetic Brake Controller system ALF Requires 2 cells battery Nose direction servo
