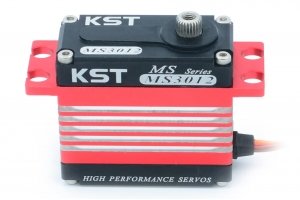

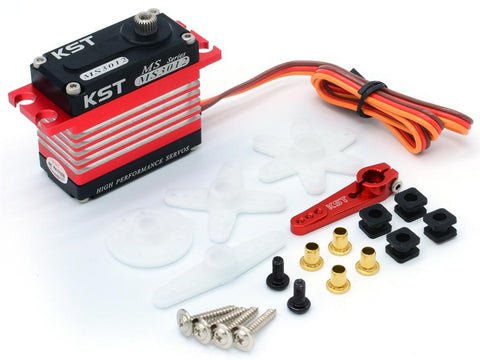

KST MS3012 72g Weight DC7.4V Voltage 0.22A Current Brushless DC Motor Aluminum Alloy Servo (4 X PACK)

Manual Video Spare Parts MS3012 digital brushless HV servo with magnetic sensor (MS) is well suited as a fuselage and wing servo for large models. The fast and enormously strong servo has a thickness of 20 mm. The motor of the KST MS 3012 servo can be loaded with up to 35Kgf.cm. The KST MS3012 digital brushless servo has a precise, backlash-free, hardened steel gear and high resetting accuracy. The brushless motor ensures high reliability and enormous power. KST servos of the MS series are equipped with a non-contact, wear-free magnet positioning system. This replaces the potentiometer system with sliding contact. Features Hardened Steel Gears Extreme Torque and Excellent Speed CNC Aluminium Case Two Ball Bearings Specification Item: MS3012 Brushless Servo Rated Voltage: DC7.4V Voltage Range: DC6.0V-8.4V Torque: 25Kgf.cm@6.0V 30Kgf.cm@7.4V 35Kgf.cm@8.4V Speed: 0.15sec/60°@6.0V 0.12sec/60°@7.4V 0.11sec/60°@8.4V Working Frequency: 1520μs/333Hz Default Travel Angle: ± 50°=100°Total Temperature Range: -10?……+65? Case Material: Aluminum Alloy Motor Type: Brushless DC Motor Gear Set Material: Hardened Steel Position Sensor: Contactless Case Dimensions: 40.5mm*20mm*38mm±0.2mm Weight: 72g±10% Ball Bearing: 2BB Size Package Including 1 * MS3012 Digital Servo 1 * Pack of Accessories
