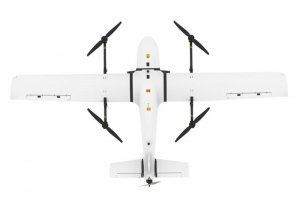

NAJA VTOL-2930EP H-TAIL Full Carbon Fiber Version UAV/FPV Platform 2025 version w/ ePower System Optional

Manual Video Spare Parts The NAJA EP 2930mm VTOL platform is a long endurance unmanned VTOL airframe designed for professional use. It is the aircraft with the vertical take-off and landing (VTOL) function that can hover, take off, and land vertically. The platform caters to larger UAS projects such as universities or commercial projects. This aircraft is capable of carrying a wide variety of payload configurations and offers extended flight times. The NAJA 2930mm is an exceptionally large aircraft designed for professional use and can be equipped with a full system of advanced control electronics to run in sync with the most advanced ground stations. This plane can get most anywhere, and perform most any job-related task you may require. The power pack includes: (Optional) * T-motor MS8014 KV160 (VTOL Motors) x 4 * Dualsky XM6360EA 190KV (Forward Motor) x 1 * T-motor Flame 100A HV ESC x 4 * Hobbywing 130A ESC x 1 * Falcon PAE 24″ Propeller (Pairs) x 2 * Falcon C2E 21″ Propeller x 1 * Savox SC-1251MG Servo x 4 * Savox SC-1256 Servo x 2 * Long UAV Pitot Tube x 1 * Build Kit x 1 SPECIFICATIONS for the airframe Dimensions Wingspan: 2930mm Length: 1900mm Wing Area: 90dm2 Payload Bay: 560mm x 210mm x 185mm Weight and Payload Empty Weight: 6.2kg Empty Weight with ARF Package: 16.5kg Maximum Take-off Weight: 23kg Payload Capacity: 6kg Packaging Information Shipping Dimensions of Package: 130mm x 51mm x 40mm Package Weight: Volumetric Weight of 55kg Flight Characteristics without Payload Cruise Speed: 55mph / 88kph Maximum Speed: 75mph/120kph Stall Speed: 28-31mph / 45-50kph Maximum Flight Time: ¡Ö1.5hr Range: Restricted to Flight Time Flight Characteristics at Maximum Payload Cruise Speed: 50mph / 80kph Maximum Speed: 112kph / 70mph Stall Speed: 28-31mph / 45-50kph Maximum Flight Time: ¡Ö1.5hr Range: Restricted to Flight Time
