Skywing-67″ Edge 540 – (PRE ORDER)

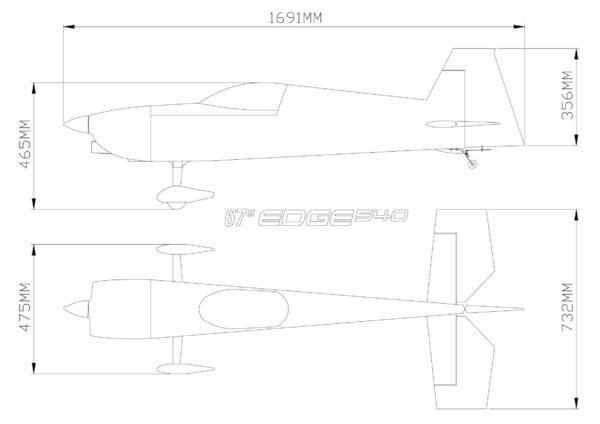

Manual Video Spare Parts SW-67" Edge 540 – GST Inc Product Information 1) Advanced construction for today's demanding pilots 2) Factory assembled detailed canopy interior 3) Pre-baffled cowling for maximum motor cooling 4) Fast assembly time with pre-hinged and pre-sealed ailerons and elevators 5) preinstalled high quality extensions. 6) Incredible value with carbon fiber wing tube, landing gear and tailwheel assembly. 7) Wing bag and electric spinner – INCLUDED 8) Skwying's PATENTED rapid assembly wing design! PRODUCT DATA Wingspan: 67 in./1701mm Lenqth: 66 in./1681mm Wing Area: 891.25 sq in/57.5dm² Weight: Gasoline settings; 8.05 lbs/3.65kg Electric setting:8.05 lbs/3.65kg(6S/4500mah) Packaging Size/ Weight 134*51*28cm/7.3kg Test device: Engine: DLE20RA Servos: Elevator Aileron Rudder(THETA THM989*4) Throttle(CLI-310*1) Propellor: 17 *6 power supply: 2S-2200mah *1 Spinner: 2.5”(63mm) Servo arm: Aileron=1.25" *2 Elevator Rudder=1.5" *2 Test device: Motor: dualsky GA2000R-KV480 ESC: Hobbywing Platinum 100A V3 Servos: Elevator Aileron Rudder(THETA THM989*4) Propellor:18*10 power supply: 6S-4500-5000mah *1 Spinner: 2.5”(63mm) Servo arm: Aileron=1.25" *2 Elevator Rudder=1.5" *2 REQUIRED: 1) 20cc Gas Engine*1pcs 2) Carbon Propeller (18×10)*1pcs 3) Digital High Speed Throttle Servo*1pcs 4) Digital High Torque Metal Gear Servos 35*15mm/18kg*4pcs 5) 1.25"-1.5" Arms – tapped for 3mm hardware (ailerons-1.25 x 2, elevator-1.5" x 1 rudder-1.5" x 1)
