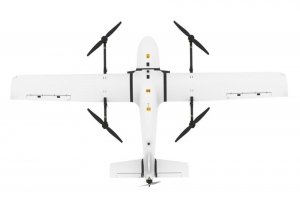

Star-X VTOL-4800HP PRO-U Universal Version 95kg MTOW 25kg task payload Max 1000km endurance UAV for Mapping, Reconnaissance

Manual Video Spare Parts Star-X series UAV with optimized design in 2023 were all integrated by TeamAustars with multiple task payloads and engines options for industrial & government customer markets. Star-X UAVs feature long endurance and optimized efficiency. The whole product lines include full composite and carbon fibre/CF two versions. CF version is upgraded by carbon fibre material in key structure surfaces. Star-X VTOL-4800HP PRO-U Universal version can achieve long range around 900-1200km with EFI or HF Engines & 30L fuel tank for coastal reconnaissance. With optional reserve fuel tank, its performance can be upgraded to a new level with 200-300km range. Technical Data: Wingspan: 4800mm Length: 2580mm Height: 845mm Max take-off weight:95kg Max payload with fuel: 34kg Max effective task Payload Weight:25-30kg Tested task payloads: 4Hours/25kg, 8Hours/10kg Cruise Speed:108-118 km/h Max Flight Speed:162 km/h Control radius:150-500km?Customizable up to transceiver and SATCOM? Max. Altitude AMSL:3500-7000m (up to the engine option) Max. Wind Resistance:12m/s Operation environment: -10°C+45°C Fuel Tank Capacity: 30L (can be upgraded to 35L with Reserve fuel tank) Engine option: 150-210cc EFI engine. Recommend LID 170cc B2G EFI, or HFE, QRS 183cc B2G or HFE for long TBOH 300 with Protocols to link Ardupilot and display all the sensors data. Economy engine option can be DLE170cc/DLE170ME/DLA180cc. Teamaustars assist all the customers in 24/7 online support. Product key features: · Excellent compact design to maximize the efficiency MTOW up to 95kg. · Hybrid power with Carburettor, EFI, Heavy fuel option to reach long endurance 10Hours. · Modular design for fast deployment by PNP less 10 mins · Optional reserve fuel tank for extra endurance. Standard Kit package: $9300 USD Complete UAV airframe VTOL arm sets Fuel tank Navigation lights with controllable switch Airspeed pitot Front & Rear landing gears Transport Box: 195 x 92 x 71cm e-Power System Package (ePSP) recommended (Extra charge) Customized e-Motors 24S for VTOL x 4 Customized ESC for VTOL x 4 Industrial HD MG servos x 4+N VTOL CF Propeller x 2 (Pair) + 1 x Pair spare (total 3 x Pairs) Build kit x 1 Airspeed sensor system with pitot (Rain-proof and de-icing) DroneCAN Protocol x 1 UAV Lipo Batteries for VTOL power 8500mah/12S x 4 or equivalent battery configuration pack UAV Battery Charger PC1500 x 1 Avionics wirings, UBEC, connectors, DC power modules x 1 set RC Controller Futaba 16CH or equivalent Radio SIYI MK15 for manual takeoff /landing x 1 Optional Datalink from 15-200km Optional Professional/Military Ground Control Station (for PNP version, Teamaustars will help to integrate all together and test, which is included in Build service and Tuning & Flight test) Optional Industrial camera or POD, check Camera & PODs categories. To help the end user team to save the time and costs, Team Austars provide "Build service" and "Tuning & Flight Test" with optional propulsion flight system (including well known flight controller , RTK positioning) Optional Propulsion Flight System/(PFS) including: Option A PFS package: CUAV X7+ Pro autopilot + CUAV C-RTK 9Ps Positioning GNSS module x 1 or Cube Orange Set x 1 + Here 3 GNSS + ADS-B/RFD900 Telemetry x 1 DLE170cc EFI with generator version x 1 Pusher Propeller x 1 + 1 (Spare) Lipo battery for engine starter x 1 Lipo battery for internal avionics power x 1 Aviation Transport Box x 1 Set Option B PFS package: CUAV X7+ Pro autopilot + CUAV C-RTK 9Ps Positioning GNSS module x 1 or Cube Orange Set x 1 + Here 3 GNSS + ADS-B/RFD900 Telemetry x 1 DLA180cc EFI with one key starter/generator version x 1 Pusher Propeller x 1+1 (Spare) Lipo battery for engine starter x 1 Lipo battery for internal avionics power x 1 Aviation Transport Box x 1 Set Option C PFS package: (Recommended) (recommended with protocols for Audupilot/Data) CUAV X7+ Pro autopilot + CUAV C-RTK 9Ps Positioning GNSS module x 1 or Cube Orange Set x 1 + Here 3 GNSS + ADS-B/RFD900 Telemetry x 1 QRS183cc B2G EFI with one key starter/generator version x 1 Pusher Propeller x 1+1 (Spare) Lipo battery for engine starter x 1 Lipo battery for internal avionics power x 1 Aviation Transport Box x 1 Set Option D PFS package: (Recommended) (Luxury for performance/best value) CUAV X7+ Pro autopilot + CUAV C-RTK 9Ps Positioning GNSS module x 1 or Cube Orange Set x 1 + Here 3 GNSS + ADS-B/RFD900 Telemetry x 1 QRS183cc B2H Heavy Fuel with one key starter/generator version Pusher Propeller x 1+1 (Spare) Lipo battery for engine starter x 1 Lipo battery for internal avionics power x 1 Aviation Transport Box x 1 Set Option E PFS package: (Luxury for performance with protocols for ardupilot/data) CUAV X7+ Pro autopilot + CUAV C-RTK 9Ps Positioning GNSS module x 1 or Cube Orange Set x 1 + Here 3 GNSS + ADS-B/RFD900 Telemetry x 1 LID B2G 170cc EFI with one key starter/generator version Lipo battery for engine starter x 1 Lipo battery for internal avionics power x 1 Aviation Transport Box x 1 Set Option F PFS package:(Recommended) (For good value/performance) CUAV X7+ Pro autopilot + CUAV C-RTK 9Ps Positioning GNSS module x 1 or Cube Orange Set x 1 + Here 3 GNSS + ADS-B/RFD900 Telemetry x 1 DLE170ME Version EFI with Starter/Generator version Pusher engine propeller x 1+1 (for spare) Lipo battery for engine starter x 1 Lipo battery for internal avionics power x 1 Aviation Transport Box x 1 Set
