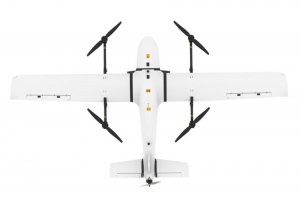

Star-X VTOL-6900HP X8 CoAxial 150kg MTOW 45kg Payload with fuel for Telecom Relay RTF Version

Manual Video Spare Parts Star-X series UAV with optimized design in 2023 were all integrated by TeamAustars with multiple task payloads and engines options for industrial & government customer markets. Star-X UAVs feature long endurance and optimized efficiency. The whole product lines include full composite and carbon fibre/CF two versions. CF version is upgraded by carbon fibre material in key structure surfaces. Star-X VTOL-6900HP UAV was released in early 2025 and designed for telecom relay, border reconnaissance powered by Limbach 550 EFI engine with one key starter Price Reference for RTK version with ePower Pack A (Limbach 550EFI engine), 3 Lights AI Seeker, 200km Datalink (3in1) and Dual screen Professional GCS around $220K USD (For RTK version) Standard Kit Price Complete UAV airframe Front cockpit cover Rear cockpit cover VTOL arm sets Fuel tank Navigation lights with controllable switch Front & Rear landing gears Wingspan: 6900 mm Length: 3990 mm MTOW 150kg Max altitude: 4500-7000m (up to the engine selection, HF version can achieve long endurance) Cruise speed: 120KM/H Fuel tank: 40 liters included Max Payload: 80kg Engine: 290cc-550cc UAV engine, recommended Limbach 275 EFI, Limbach 288cc EFI or HFE, LID B2H-290 EFI, or LID B2H-290D HFE, QRS 312cc EFI, QRS 312cc Heavy fuel, LID B2H-390, Limbach 550 EFI with one key starter/generator e-Power System Package (ePSP) recommended (Extra charge) Customized e-Motors for VTOL x 8 Customized ESC for VTOL x 8 Industrial HD MG servos x 8 VTOL CF Propeller x 4 (Pair) + 1 x Pair spare (total 5 x Pairs) Pusher engine propeller x 1 Build kit x 1 Navigation lights x 1 set Airspeed sensor system with pitot (rainproof & deicing) DroneCAN Protocol x 1 UAV Lipo Batteries for VTOL power UAV Lipo Battery Professional Charger x 2 Avionics wirings, connectors, DC power modules x 1 set RC Controller Futaba 16CH or SIYI MK15 for manual takeoff /landing x 1 Optional Datalink from 15-200km Optional Professional/Military Ground Control Station (for PNP version, Teamaustars will help to integrate all together and test, which is included in Build service and Tuning & Flight test) To help the end user team to save the time and costs, Team Austars provide "Build service" and "Tuning & Flight Test" with optional propulsion flight system (including well known flight controller , RTK positioning) Optional Propulsion Flight System/(PFS) including: Option A PFS package: CUAV X7+ Pro autopilot x 1 CUAV C-RTK 9Ps Positioning GNSS module x 2 Or Cube Orange + RTK Dual GPS Limbach 550 EFI One key starter/generator 28V/1000W new BLS version x 1 Pusher engine propeller x 1 Muffler stacks x 2 Coupling kit for generator x 1 3S Lipo battery for engine starter x 1 Lipo battery for internal avionics power x 1 (16000-20000mAh) Aviation Transport Box x 1 Set Option B PFS package: CUAV X7+ Pro autopilot x 1 CUAV C-RTK 9Ps Positioning GNSS module x 2 Or Cube Orange + RTK Dual GPS LID B2G 390 EFI One key starter/generator 28V/1000W new BLS version x 1 Steel Exhaust Pipes x 2 Silencer system x 1 Lipo battery for engine starter x 1 Lipo battery for internal avionics power x 1 (16000-20000mAh) Aviation Transport Box x 1 Set Option C PFS package: CUAV X7+ Pro autopilot x 1 CUAV C-RTK 9Ps Positioning GNSS module x 2 Or Cube Orange + RTK Dual GPS Limbach 288cc 20KW Heavy Fuel/HF engine One key starter/generator 28V/1000W new BLS version x 1 Steel Exhaust Pipes x 2 Silencer system x 1 Lipo battery for engine starter x 1 Lipo battery for internal avionics power x 1 (16000-20000mAh) Aviation Transport Box x 1 Set Option D PFS package: CUAV X7+ Pro autopilot x 1 CUAV C-RTK 9Ps Positioning GNSS module x 2 Or Cube Orange + RTK Dual GPS LID 290cc B2G 18.5KW EFI One key starter/generator 24V/400W x 1 Steel Exhaust Pipes x 2 Silencer system x 1 3S Lipo battery for engine starter x 1 Lipo battery for internal avionics power x 1 (16000-20000mAh) Aviation Transport Box x 1 Set Option E PFS package: CUAV X7+ Pro autopilot x 1 CUAV C-RTK 9Ps Positioning GNSS module x 2 Or Cube Orange + RTK Dual GPS LID 290cc B2H 18.5KW Heavy Fuel/HF Version One key starter/generator 24V/400W x 1 Steel Exhaust Pipes x 2 Silencer system x 1 3S Lipo battery for engine starter x 1 Lipo battery for internal avionics power x 1 (16000-20000mAh) Aviation Transport Box x 1 Set Option F PFS package: CUAV X7+ Pro autopilot x 1 CUAV C-RTK 9Ps Positioning GNSS module x 2 Or Cube Orange + RTK Dual GPS QRS 312cc B2G EFI Version engine One key starter/generator 24/2000W x 1 Steel Exhaust Pipes x 2 Silencer system x 1 3S Lipo battery for engine starter x 1 Lipo battery for internal avionics power x 1 Aviation Transport Box x 1 Set Option G PFS package: CUAV X7+ Pro autopilot x 1 CUAV C-RTK 9Ps Positioning GNSS module x 2 Or Cube Orange + RTK Dual GPS QRS 312cc B2H Heavy Fuel Version engine One key starter/generator 24/2000W x 1 Steel Exhaust Pipes x 2 Silencer system x 1 3S Lipo battery for engine starter x 1 Lipo battery for internal avionics power x 1 Aviation Transport Box x 1 Set
