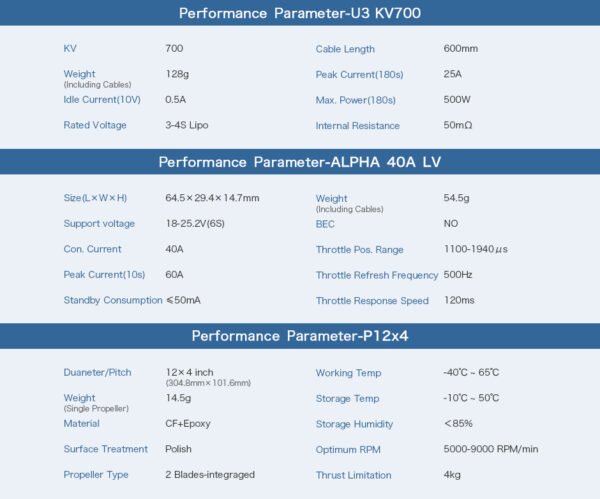

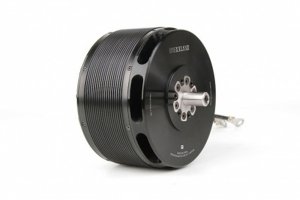

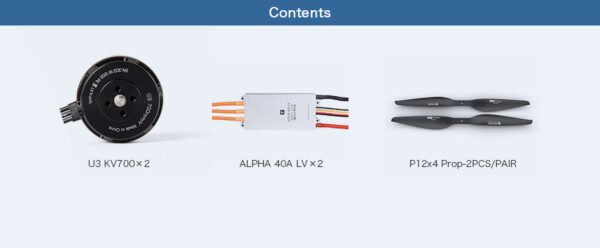

A matched T-Motor power combination: the U3 motor in KV700, an ALPHA 40A LV ESC and a P12×4 propeller. Selling these as a set is the right approach because the three parts are chosen together — the propeller sets the load, the motor is wound to turn that load at the intended voltage, and the ESC is rated for the current that motor and propeller will draw.
Mismatching the three is the usual cause of a power system that runs hot, draws more current than expected, or fails to produce the thrust the airframe needs. Buying a combination that T-Motor has already matched removes that risk.
The KV700 winding indicates a relatively high KV for the U3 class, which suits a smaller propeller turning faster — consistent with the P12×4 in the set. The ALPHA 40A LV is the low-voltage version of the ALPHA ESC, so the set is intended for a lower cell count.
