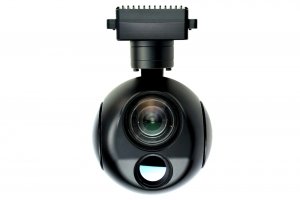

VIEWPRO Micro Z10TIRM Lightest Triple-sensor EO+IR+ Laser Rangefinder Gimbal Camera

Manual Video Spare Parts Micro Z10TIRM is a lightweight triple-sensor gimbal camera with laser rangefinder, with 499g wight it integrates 10x optical zoom camera, 24 mm 640*512 IR thermal sensor and 1000m laser rangefinder. As an upgraded version of Mini Z10TIR, it is more powerful while maintaining its small size and lightweight. Micro Z10TIRM can be installed on rotary-wing drones for public safety, first response, power line inspection, disaster prevention, emergency monitoring inspections, search and rescue, etc. Hardware Parameter Working voltage 12V Input voltage 3S ~ 6S Output voltage 5V (connect with PWM) Dynamic current 1250mA @ 12V Idle current 750mA @ 12V Working environment temp. -20°C ~ +60°C Output IP(1080P/720p 25/30fps) Local-storage TF card (Up to 128G, class 10, FAT32 or ex FAT format) Photo storage format JPG(1920*1080 / 1280*720) Video storage format MP4 (1080P/720P 25fps/30fps) Control method PWM / SBUS / TTL / TCP Gimbal Spec Mechanical Range Pitch/Tilt: -33°-110°, Roll: ±35°, Yaw/Pan: ±360°*N Controllable Range Pitch/Tilt: -30°-90°, Yaw/Pan: ±360°*N Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02° One-key to center √ EO Camera Spec Imager Sensor 1/3-type CMOS(Progressive Scan) Picture quality Full HD 1080 (1920*1080) Effective pixel 4.08MP Lens optical zoom 10x, F=3.3~33.0mm, F1.8~3.4 Digital zoom 16x Min object distance 10mm(wide end) to 800mm(tele end) Horizontal viewing angle 58.2°(wide end) ~ 6.9°(tele end) Sync system Internal S/N ratio more than 50dB Min illumination 0.5 lx (1/30s, F1.8, 50%) Gain Auto / Manual White balance ATW1 (Narrow), ATW2 (Wide), One push, manual (B, R),indoor,outdoor Shutter speed 1/1s to 1/10,000s Backlight compensation Yes Aperture control 16 steps OSD Yes IR Thermal imager spec Focus Length 24mm Horizontal FOV 18.2° Vertical FOV 14.6° Diagonal FOV 23.2° Detective Distance (Man: 1.8×0.5m) 1000 meters Recognize Distance (Man: 1.8×0.5m) 250 meters Verified Distance (Man: 1.8×0.5m) 125 meters Detective Distance (Car: 4.2×1.8m) 3067 meters Recognize Distance (Car: 4.2×1.8m) 767 meters Verified Distance (Car: 4.2×1.8m) 383 meters Working mode Uncooled long wave (8μm~14μm) thermal imager Detector pixel 640*512 Pixel pitch 12μm Focusing method Athermal prime lens Emissivity correction 0.01~1 NETD ≤50mK (@25°C) MRTD ≤650mK (@characteristic frequency) Image enhancement Auto adjust image brightness and contrast ratio Color palette White, iron red, pseudo color Auto Non-uniform correction Yes (no shutter) Digital zoom 1x ~ 12x Sync correct time Yes EO / IR Camera Object Tracking Update rate of deviation pixel 50Hz Output delay of deviation pixel 5ms Minimum object contrast 5% SNR 4 Minimum object size 32*32 pixel Maximum object size 128*128 pixel Tracking speed ±48 pixel/frame Object memory time 100 frames (4s) The mean square root values of pulse noise in the object position < 0.5 pixel IR Laser Rangefinder Range 5~1000 meters Resolution 1m:<400±1 2m:>400±0.4% Light Beam 905nm pulse laser Divergent Angle 12 mrad Laser pulse frequency 0.1–1Hz Location Resolving Latitude and longitude of target Ranefinder Target distance measuring Packing Information N.W. 499g Product meas. 122.2*115.4*141.6 (Standard version) /122.2*115.4*147.3mm(Viewport version) Accessories 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, TTL cable / Hight quality plastic box with foam cushion Package meas. 300*250*200mm
