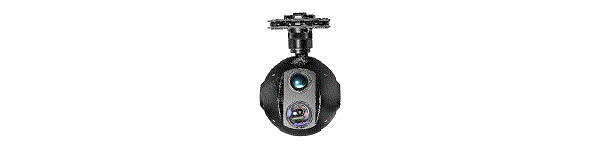

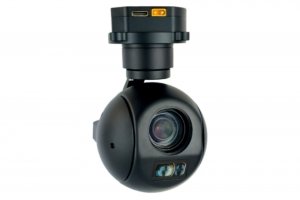

VIEWPRO Q30TIR 3-axis Gimbal Payload SONY 30X Zoom Camera

Manual Video Spare Parts Professional 3-axis High-precise FOC Program Stabilized the Q30TIR is a highly optimized 3-axis gimbal payload with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings – as is common with many gimbals – the Q30TIR uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight. SONY 30x Zoom Starlight Camera Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q30TIR can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p FHD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 3000 meters, which can meet the application requirements of various domains. SONY 30x Zoom Starlight CameraAdvanced IR Thermal Imager Integrated French ULIS high-precision uncooled long wave (8μm ~14μm ) thermal image sensor, Q30TIR can record and transmit thermal image and visible images at the same time in PIP format. With temperature measuring sensor, it could accurately attain the temperature of objects and individuals. The thermal sensor allows three points’ temperature ranging between -30?~300? to be measured and displayed on screen. Adjust the different colors applied to the thermal data based on the needs of specific scenarios. *Temp bar: Indicates gradually variation temperature with corresponding colors. *Temp measurement: Display average, highest, and lowest temperatures in real time. *Temp alarm: Don't miss a thing when object temperatures exceed pre-set alert values. Visible Light and Thermal Imager Dual Sensors Object Tracking Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame,object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect. Multi Output Methods Optional Q30TIR supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan. Multi Control Methods Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl. Control box signal interfaces: Compatible with Viewport Q30TIR is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play. Application Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties. Dimensions Specification Hardware Parameter Working voltage 12V ~ 16V Input voltage 3S ~ 4S Output voltage 5V (connect with PWM) Dynamic current 500mA @ 12V Idle current 400mA @ 12V Power consumption ≤ 6W Working environment temp. -20°C ~ +60°C Output micro HDMI(HD output 1080P 60fps) / IP / SDI Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format) Control method PWM / TTL / S.BUS Gimbal Spec Pitch/Tilt ±90° Roll ±85° Yaw/Pan ±170° / ±360°*N (IP / SDI output) Vibration angle Pitch/Roll: ±0.01°, Yaw?±0.01° One-key to center √ EO Camera spec Imager Sensor SONY 1/2.8″ “Exmor R” CMOS Picture quality Full HD 1080 (1920*1080) Effective pixel 2.13MP Lens optical zoom 30x, F=4.3~129mm Digital zoom 12x (360x with optical zoom) Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) 720p mode: 63.7°(wide end) ~ 2.3°(tele end) SD: 47.8°(wide end) ~ 1.7°(tele end) Sync system Internal S/N ratio more than 50dB Min illumination Color 0.01lux@F1.6 Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) White balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual Shutter speed 1/1s to 1/10,000s, 22 steps Backlight compensation Yes Aperture control 16 steps Defog Yes OSD Yes Fotoformate JPEG Videoformate MP4 EO Camera Object Tracking Update rate of deviation pixel 50Hz Output delay of deviation pixel <15ms Minimum object contrast 5% SNR 4 Minimum object size 16*16 pixel Maximum object size 160*160 pixel Tracking speed ±32 pixel/frame Object memory time 100 frames (4s) The mean square root values of pulse noise in the object position < 0.5 pixel IR Thermal Imager Spec Lens 25mm Horizontal FOV 24.6° Vertical FOV 18.5° Diagonal FOV 30.4° Detective Distance (Man: 1.8×0.5m) 735 meters Recognize Distance (Man: 1.8×0.5m) 184 meters Verified Distance (Man: 1.8×0.5m) 92 meters Detective Distance (Car: 4.2×1.8m) 2255 meters Recognize Distance (Car: 4.2×1.8m) 564 meters Verified Distance (Car: 4.2×1.8m) 282 meters Working mode Uncooled long wave (8μm~14μm) thermal imager Detector pixel 640*480 Pixel size 17μm Focusing method Athermal prime lens Emissivity correction 0.01~1 NETD ≤50mK (@25°C) MRTD ≤650mK (@characteristic frequency) Image enhancement Auto adjust image brightness and contrast ratio Color palette White, iron red, pseudo color Auto Non-uniform correction Yes (no shutter) Digital zoom 1x ~ 4x (up to 6x) Sync correct time Yes Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) Temperature warning 0?~100? IR Thermal Imager Object Tracking Update rate of deviation pixel 25Hz Output delay of deviation pixel <3ms Minimum object size 16*16 pixel Maximum object size 128*128 pixel Tracking speed ±32 pixel/frame Object memory time 100 frames (4s) Packing Information N.W. 1230g / 1276g(SDI output) Product meas. 127.6*164.5*173.5mm Accessories 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion
