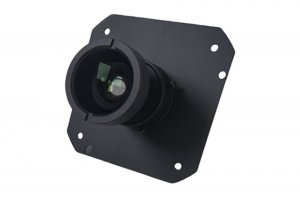

3-Axis Gremsy 24S Camera System THAI

Manual Video Spare Parts PRODUCT INFO The 3-Axis Gremsy 24S Camera System is designed for front mount multicopter for aerial inpsection, it consists of three components: 1. Gremsy 2-axis gimbal with quick attach-detach gimbal adopter(damping plate optional). 2. Airpixel entire R3 for directly geotagging and Mavlink control (optional). 3. ADTi 24MP APS-C 24S V3 OR 24L V2 camera (lens optional). This camera system is designed for all the practical features of Ardupilot and PX4, it has: 24 megapixel APS-C Sony CMOS sensor. Compatible with any Emount full frame lenses Bionz X image processor. EXIF GPS directly geotagging from airpixel R3 MAVlink remote control (with airpixel R3 only) Quick attach-detach smart gremsy gimbal system Reliable system for high quailty images total weight 465g with damping plate (with 25mm ADTI lens) CAMERA SPECIFICATIONS Sensor Type:CMOS Sensor Manufacturer:Sony Effective Megapixels:24.3 Sensor Format:APS-C Sensor size:366.6mm2 (23.50mm x 15.60mm) Approximate Pixel Pitch:3.92 microns Focal Length Multiplier:1.5x Aspect Ratio:3:2 Color Filter Type:RGBG Anti Aliasing Filter:Fixed Color Depth （bits):23.8 Maximum Effective ISO:1,347 Image Capture Image Resolution: 6000 x 4000 (24.0 MP, 3:2), 6000 x 3376 (20.3 MP, 16:9), 4240 x 2832 (12.0 MP, 3:2), 4240 x 2400 (10.2 MP, Other), 3008 x 2000 (6.0 MP, 3:2), 3008 x 1688 (5.1 MP, 16:9), 12416 x 1856 (23.0 MP, Other), 8192 x 1856 (15.2 MP, Other), 2160 x 5536 (12.0 MP, Other), 2160 x 3872 (8.4 MP, Other) Image File Format:JPEG, RAW, RAW+JPEG Continuous-mode frames/second:4.0 Video Capture Video Resolution: 1920×1080 (60p/​60i/​30p/​24p) 1440×1080 (30p) 640×480 (30p) Video File Format:XAVC S/AVCHD 2.0 / MP4 HD Video Out:Yes HD Video Connection:HDMI Lens & Optics Lens Mount:Sony E Normal Focus Range:25 cm to Infinity Auto Focus: Yes Manual Focus: Yes Display (detached) Power: 5V DC Buttons: No Screen Size: 2 inch mini touch screen Camera Camera Size: 7.7*6.2*3.8 cm Camera Weight: 122 g Package Size: 30*20*15 cm Package Weight: 500 g Power: 10-25V DC Lipo or Liion Operating Temperature: -10 to 40°C Lens & Optics Lens Mount:Sony E Auto Focus: Yes Manual Focus: Yes Shutter Type:Mechanical shutter Speed:1/4000-30sec Gimbal Camera（LxWxH): 9.9*12*17.5 cm Gimbal camera with lens (with damping plate) Weight: 468 g Package Weight: 1.5 kg Gremsy ADTI 3-axis gimbal Built-In Functions 1. Operation Modes: On/Off/Lock mode/Follow mode/Mapping mode 2. New generation IMU Sensor 3. Gremsy Specialized Gimbal Drive Motors with Encoders (Encoder 14 bits) 4. Airpixel R3 (optional) PLATFORM SUPPORTED Drones/Flight Controllers Supported: Pixhawk/ Cube Pilot FC/ Skynode Camera Supported: ADTI 24L V2/ 24S V3 MECHANICAL & ELECTRICAL CHARACTERISTICS Working Current Static current: 400mA (@12V) Dynamic current: 800mA (@12V) Locked motor current: Max 3.5A (@12V) Operating Temperature:5° F ~ 120° F (-15° C ~ 50° C) Gimbal Weight: 250g Gimbal Dimension (DxWxH): 99x120x175 (mm) PERIPHERAL Damping Type: MIO 3-axis Damping Gimbal Mount: Bottom Quick Release: WORKING PERFORMANCE Connections: USB 2.0, CAN, UART, S-bus, PPM, Bluetooth 4.0 Input power: 12-52V WORKING PERFORMANCE Angular Vibration Range: ± 0.02° Maximum Controlled Rotation Speed: Pan axis: 100°/s Tilt axis: 100°/s Roll axis: 100°/s Mechanical Endpoint Range: Pan axis control: ±338° Tilt axis control: -200° to +135° Roll axis control: -265° to +75° Controlled Rotation Range: Pan axis control: ±325° Tilt axis control: ± 120° Roll axis control: ± 40° Airpixel Entire R3: 1. Directly geotagging on images as EXIF data 2. MAVlink control for PX4 or Ardupilot
