Holybro Zorro Radio Controller (M2)

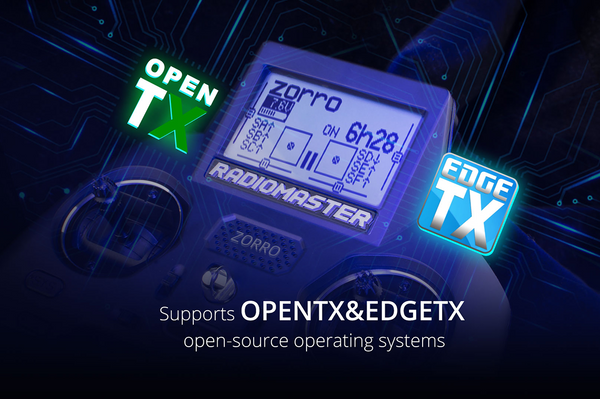

Manual Video Spare Parts Holybro Zorro Radio Controller (M2) RadioMaster Zorro Raio – The Compact Class-Leader. Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again. Specification Versions CC2500 4in1 ELRS ELRS Starter Set CC2500 + TBS Nano Crossfire Combo Physical Dimensions 170*159*108mm Weight 350 grams Operating Frequency 2.400GHz-2.480GHz Internal RF Options CC2500 multi-protocol 4-in-1 multi-protocol ELRS CC2500 multi-protocol Supported Protocols Module dependent Module dependent ELRS Module dependent RF Power CC2500: 20dBm max. 4-in-1: 20dBm max. Up to 250mw ( CE & FCC Versions will be available) CC2500: 20dBm max. Antenna Gain Folding 2db Operational Current 160mA@8.4V Operational Voltage 6.6-8.4v DC Control Distance > 2km @ 20dbm > 2km @ 20dbm Receiver and Power Output dependant > 2km @ 20dbm Operating system OpenTX / EdgeTX Compatible Control channels Maximum 16 (Rx dependent) Display 128*64 Monochrome LCD Battery 2 x 18350 (Not included) Charging Built in USB-C Charging Gimbal Hall-effect Module Bay Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost) Firmware Upgrade Method Via USB or SD card Click to check the RadioMaster Radio Comparison Chart. Support OPENTX & EDGETX Support 4 RF Configurations Switchable in Mode 1 and Mode 2 Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2. Adjustable Hall Gimbals External Module Bay Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules. 18350 Battery Compartments Battery Charging Supports USB-C Directing Charging Supports External 2S Battery Power Supply Oversized LCD & Foldable Antenna DIY Attachment Points Ergonomically Designed Accessories 18350 900mah Battery RP1 ExpressLRS 2.4ghz Nano Receiver RP2 ExpressLRS 2.4ghz Nano Receiver Carry Case for Zorro Radio XT30 to JST 3 Pin connector for Zorro Radio User Manuals & Firmware ZORRO User Manual ZORRO Quick Start Guide 1.1 Zorro SD Contents and Firmware Package Includes Please note, when you choose a different version, it is packaged with different parts. The chart below doesn't mean you will receive all versions. Version Package Includes CC2500 1 * Zorro Radio Controller CC2500 Version 4-in-1 1 * Zorro Radio Controller 4-in-1 Version ELRS 1 * Zorro Radio Controller ELRS Version ELRS Starter Set 1 * Zorro ELRS Radio Control 2 * RP1 ExpressLRS 2.4ghz Nano Receiver 1 * RP2 ExpressLRS 2.4ghz Nano Receiver CC2500 + TBS Nano Crossfire Combo 1 * Zorro Radio Controller CC2500 Version 1 * TBS Nano Crossfire Module
