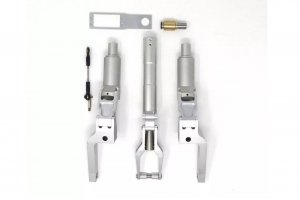

JP Hobby ER-120 Full Set with Brakes (T-One F-16 1:8 1.2m) + Controller

Manual Video Spare Parts Electric Retract ER-120 (T-One F-16 1:8 1.2m) > Model Weight: until 10kg > Struts diameter: na > Angle: Specific > Rotation direction: 2x Inside (jack side) + 1x Outside (opposite jack side) > Mounting: Low (below support) > Wheels: 2x 65mm (with brakes) + 1x 50mm Serial JP Hobby ER-120 (12kg) Wheel(s) axle(s) diameter(s) (mm) 5 Weight (gr): 880 gr Max weight Up to 10kg Torque 12kg/cm Rotation angle 90° Rotation direction Inside (jack side), Ouside (opposite jack)(nose retract) Working voltage (Volts): 7.4 to 8.4v (2s LiPo) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: hydraulic Wheels: ball bearings mounted For planes up to 10kg Technical Specifications Struts diameter: nc Main gear wheels diameter: 65mm Nose gear wheel diameter: 50mm Wheels axle diameter: 5mm Weight: 880g (for the complete set including the 3 struts, 3 retracts, wheels, the sequencer and brake controller) Dimensions: for detailed dimensions, please refer to the pictures Working voltage: 7.4-8.4V (2S LiPo) Content 2x Scale metal struts for main landing gear equiped with 65mm wheels & brakes system 1x Scale metal strut for nose gear equiped with 50mm wheel and linkage 3x Electric Retracts motors JP Hobby ER-120 1x JP Hobby Multifunction Landing Gears and Doors Sequencer V1/V2 1x JP Hobby Electrical Magnetic Brake Controller system ALF Requires 2 cells battery Nose direction servo
