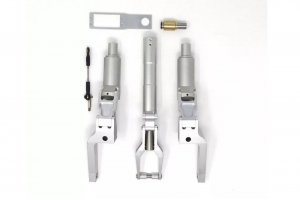

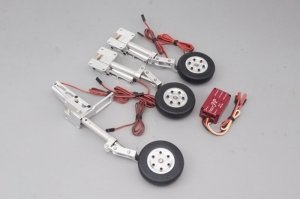

JP Hobby ER-200 Full Set with Brakes (Top RC Voyager 3.25m) + Controller

Manual Video Spare Parts Electric Retract ER-200 (Top RC Voyager 3.25m) > Model Weight: until 30kg > Struts diameter (main/front): nc > Retracts mounting diameter: 15mm > Angle: 3x 90 degrees > Rotation direction: 2x Inside (jack side) – 1x Outside (opposite jack side) > Mounting: 3x Low > Wheels: nc Serial JP Hobby ER-200 (30kg) Max weight Up to 30kg Torque 15kg/cm Rotation angle 90° Rotation direction Inside (jack side), Ouside (opposite jack)(nose retract) Working voltage (Volts): 7.4 to 8.4v (2s LiPo) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Materials: Aluminium Suspension: mechanical Wheels: ball bearings mounted For planes up to 30kg Servo Plate with control for threaded rod and ball joints Technical Specifications Struts diameter: nc Mounting struts diameter: 15mm Main gear wheels diameter: nc Nose gear wheel diameter: nc Wheels axles diameter: nc Weight: nc (for the complete set including the 3 struts, 3 retracts, wheels and the controllers) Dimensions: nc Retracts working voltage: 7.4-8.4V (2S LiPo) Brakes working voltage: 7.2-30V Content 2x Scale metal struts for main landing gear equiped with wheels & brakes system 1x Scale metal strut for nose gear equiped with a single-wheel and Plate 2x Electric Retracts JP Hobby ER-200 (30kg/Low/Inside) 1x Electric Nose Retract JP Hobby ER-200 Z (30kg/Low/Outside) 1x JP Hobby multifunction landing gears and doors controller 1x JP Hobby Electrical Magnetic Brake Controller system ALF Requires 2 cells battery Nose direction servo. (Servo size for steering double nose wheel: 40x20x37mm size with 3.8 to 8kg torque)
