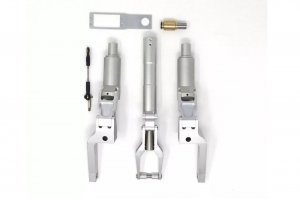

JP Hobby ER-120 Tricycle Full Set with Brakes (BVM Bobcat XL wood kit) + Controller

Manual Video Spare Parts Electric Retract ER-120 (BVM Bobcat XL wood kit) > Model Weight: until 12kg > Struts diameter: 12mm > Angle: 3x 90 degrees > Rotation direction: 2x Inside (jack side) + 1x Outside (opposite jack side) > Mounting: 3x Low > Wheels: 2x 65mm (with brakes) + 1x 50mm Serial JP Hobby ER-120 (12kg) Strut(s) Diameter(s) (mm): 12 Wheel(s) axle(s) diameter(s) (mm) 5 Weight (gr): 740 gr Max weight Up to 12kg Torque 12kg/cm Rotation angle 90° Rotation direction Inside (jack side), Ouside (opposite jack)(nose retract) Working voltage (Volts): 5 to 8.4v (2s LiPo recommended) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: mechanical Wheels: ball bearings mounted For planes up to 12kg Plate with control for threaded rod and ball joints Technical Specifications Struts diameter: 12mm Main gear wheels diameter: 65mm Nose gear wheel diameter: 50mm Wheels axle diameter: 5mm Weight: 740g (for the complete set including the 3 struts, 3 retracts, wheels and the controller) Dimensions: for detailed dimensions, please refer to the pictures Working voltage: 5-8.4V (2S LiPo) Brakes working voltage: 7.2-30V Content 2x Scale metal struts for main landing gear equiped with 65mm wheels & brakes system 1x Scale metal strut for nose gear equiped with 50mm wheel and plate 2x Electric Retracts JP Hobby ER-120 12mm (12kg/Low/Inside) 1x Electric Nose Retract JP Hobby ER-120 12mm (12kg/Low/Outside) 1x JP Hobby ER-120 V1 version All Integrated controller retract box (doors opened when the gear is down) Requires 2 cells battery Nose direction servo (option available on this page)
