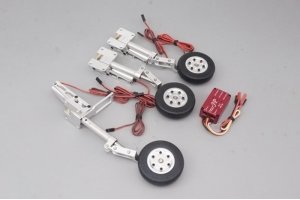

JP Hobby ER-150 ES Tricycle Full Set with Brakes (Carf Eurosport 2.0m) + Controller

Manual Video Spare Parts Electric Retract ER-150ES > Model Weight: until 20kg > Struts diameter: 15mm > Retracts mounting diameter: 15mm > Angle: 2x 90 degrees + 1x 100 degrees (nose) > Rotation direction: 2x Inside (jack side) + 1x Outside (opposite jack side) > Mounting: 3x Low > Wheels: 2x 75mm (with brakes) + 1x 63mm Serial JP Hobby ER-150 (20kg) Strut(s) Diameter(s) (mm): 15 Wheel(s) axle(s) diameter(s) (mm) 6 Weight (gr): 1360 Max weight Up to 20kg Rotation angle 90°, 100° Rotation direction Inside (jack side), Ouside (opposite jack)(nose retract) Working voltage (Volts): 7.4 to 8.4v (2s LiPo) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: mecanical Wheels: ball bearings mounted For planes up to 20kg Linkage for nose gear Technical Specifications Struts diameter: 15mm Retracts mounting diameter: 15mm Wheel axle diameter: 6mm (main gear & nose wheel) Main gears wheels diameter: 75mm Nose gear wheel diameter: 63mm Weight: 1360g (for the complete set including the struts, retracts, wheels and the 2 modules) Dimensions: for detailed dimensions, please refer to the pictures Working voltage: 7.4-8.4V Content 2x Scale metal struts for main landing gear equiped with 75mm wheels & brakes system 1x Scale metal strut for nose gear equiped with 63mm wheel and linkage 2x Electric Retracts JP Hobby ER-150ES 15mm (20kg/Low/Inside) 1x Electric Nose Retracts JP Hobby ER-150ES 100° 15mm (20kg/Low/Outside) 1x Electronic brake system control module Requires JP Hobby sequencer (option to be selected on this page – V1 controller is required for designated models) Please pay attention that only JP Hobby sequencers are qualify to work in accordance of the JP Hobby products. 2 cells battery Nose direction servo (option available on this page). Servo size for steering nose wheel : 40x 20x 37mm size with 3.8 to 8kg torque such as the KST MS1035 (not included)
