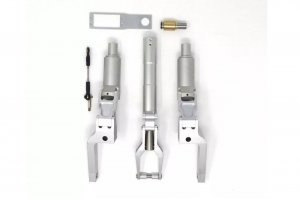

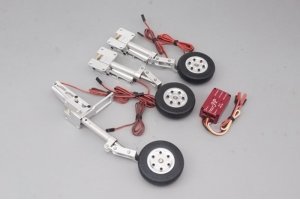

JP Hobby ER-150 Tricycle Full Set with Brakes (Skymaster F-15 1/9.5 1.42m) + Controller

Manual Video Spare Parts Electric Retract ER-150 (Skymaster F-15 1/9.5 1.42m) > Model Weight: until 20kg > Struts diameter: 17mm (Main) – 16mm (Front) > Mounting diameter: 15mm > Angle: 3x 90 degrees > Rotation direction: 2x Inside (jack side) + 1x Outside (opposite jack side) > Mounting: 3x Low > Wheels: 2x 70mm (with brakes) + 1x 63mm Serial JP Hobby ER-150 (20kg) Mounting diameter (mm): 15 Strut(s) Diameter(s) (mm): 17mm (Main) – 16mm (Front) Wheel(s) axle(s) diameter(s) (mm) 6mm (Main) – 5mm (Front) Weight (gr): 1145 g Max weight Up to 20kg Rotation angle 90° Rotation direction Inside (jack side), Ouside (opposite jack)(nose retract) Working voltage (Volts): 7.4 to 8.4v (2s LiPo) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: mechanical Wheels: ball bearings mounted For planes up to 20kg Servo Plate with control for threaded rod and ball joints Technical Specifications Struts diameter: 17mm (Main) – 16mm (Front) Mounting Struts diameter: 15mm Main gear wheels diameter: 70mm Nose gear wheel diameter: 63mm Wheels axle diameter: 6mm (Main) – 5mm (Nose) Weight: 1.145 Kg (for the complete set including the 3 struts, 3 retracts, wheels and the controller) Dimensions: for detailed dimensions, please refer to the pictures Working voltage: 7.4-8.4V (2S Li-Po) Brakes working voltage: 7.2-30V Content 2x Scale metal struts for main landing gear equiped with 70mm wheels & brakes system 1x Scale metal strut for nose gear equiped with 63mm wheel and Plate 2x Electric Retracts JP Hobby ER-150 15mm (20kg/Low/Inside) 1x Electric Nose Retract JP Hobby ER-150 15mm (20kg/Low/Outside) 1x JP Hobby ER-150 V1 version All Integrated controller retract box (doors opened when the gear is down) Requires 2 cells battery Nose direction servo. Servo size for steering nose wheel : 40x 20x 37mm size with 3.8 to 8kg torque
