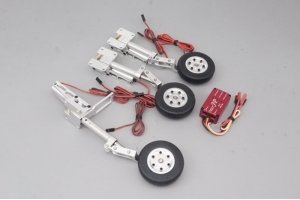

JP Hobby ER-150 Tricycle Full Set with Brakes (Skymaster X-Treme Viper Jet) + Controller

Manual Video Spare Parts Electric Retract ER-150 (Skymaster X-Treme Viper Jet 2.18m) > Model Weight: until 20kg > Struts diameter: 18mm > Retracts mounting diameter: 15mm > Angle: 3x 90 degrees > Rotation direction: 2x Outside (opposite jack side) + 1x Inside (jack side) > Mounting: 3x Low > Wheels: 2x 75mm (with brakes) + 1x 70mm Serial JP Hobby ER-150 (20kg) Mounting diameter (mm): 15 Strut(s) Diameter(s) (mm): 18 Wheel(s) axle(s) diameter(s) (mm) 6 Weight (gr): 1365 gr Max weight Up to 20kg Rotation angle 90° Rotation direction Outside (opposite jack), Inside (jack side)(nose retract) Working voltage (Volts): 7.4 to 8.4v (2s LiPo) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: mechanical Wheels: ball bearings mounted For planes up to 20kg Linkage for Outward/Return cable control (steel cable not included) Technical Specifications Struts diameter: 18mm Mounting Struts diameter: 15mm Main gear wheels diameter: 75mm Nose gear wheel diameter: 70mm Wheels axle diameter: 6mm Weight: 1365g (for the complete set including the 3 struts, 3 retracts, wheels and the controller) Dimensions: nc Retracts working voltage: 7.4-8.4V (2S LiPo) Brakes working voltage: 7.2-30V Content 2x Scale metal struts for main landing gear equiped with 75mm wheels & brakes system 1x Scale metal strut for nose gear equiped with 70mm wheel and linkage 2x Electric Retracts JP Hobby ER-150 15mm (20kg/Low/Outside) 1x Electric Nose Retract JP Hobby ER-150 15mm (20kg/Low/Inside) 1x JP Hobby ER-150 V2 version All Integrated controller retract box (doors closed when the gear is down) Requires 2 cells battery
