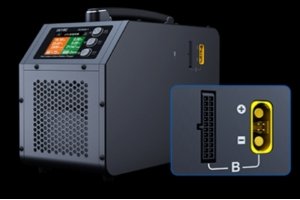

UAV UAS UA3 Ruggedized uav quick charging system 1000W X 2 inputs

Manual Video Spare Parts EV-PEAK UA3 Ruggedized uav quick charging system Brand:EV-PEAK SKU:EV-PEAK – UA3 Functional features Double channel independent output, can charge two batteries at the same time; The reinforcement type safety box protects the outer shell, is firm, resistant to fall, and has good portability. It has certain waterproof function; The humanized design operation is simple, one button can be operated; The reasonable heat dissipation design can be used in harsh environment. It supports battery charging for 6 knots /12 sections and 2 /3 batteries; LCD display, real-time display of single node voltage, current and capacity; The active PFC protection system can adapt to the outdoor power grid. specification AC input voltage: 100V-240V battery type: LiPo. Charging power: 1000Wx2 discharge power: 30Wx2. Discharge power: 30Wx2 battery number: 6 /12 /2 /3. Balance current: 1500mA/cell display mode: LED indicator light +LCD display. Size: 410 x342x204mm Weight: 9.5 kg Flight control battery charging module. Charging mode: balance charge battery type: LiPo. Charging current: 1.0 battery segment: 2S-3S.
