Manual Video Spare Parts X9 Plus-12-14S Technical Parameter Maximum pulling force: 26.5kg/shaft (53.6V, sea level) Recommended take-off weight: 11-13kg/axis (sea level) Recommended battery: 14S (LiPo) Ambient temperature: (-20~50?) Powertrain Weight: 1774g Protection class: IP*7 Motor KV value: 100KV(14S) Stator size:96*20mm Applicable carbon tube outer diameter: 40mm (diameter) ESC Support battery: 6-14S(LiPo) PWM input signal level: 3.3V/5V Compatible signal frequency: 50-500Hz Working pulse width: 1050-1950us (curing) Maximum allowable voltage: 60.9V(14S) Maximum allowable peak current (10 seconds) 120A (requires good cooling conditions) BEC: none Propeller 36120(36 inches)/36190 (36 inches) View more

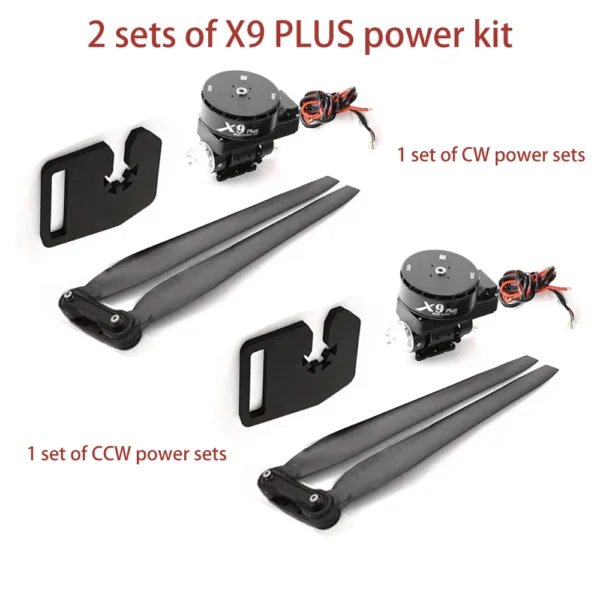

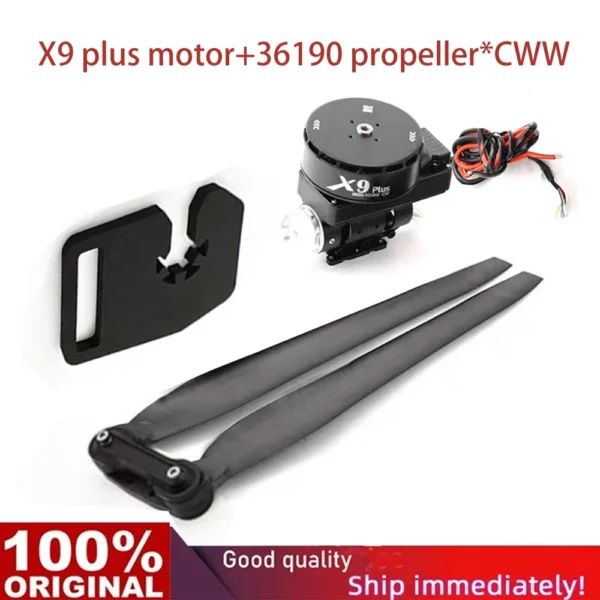

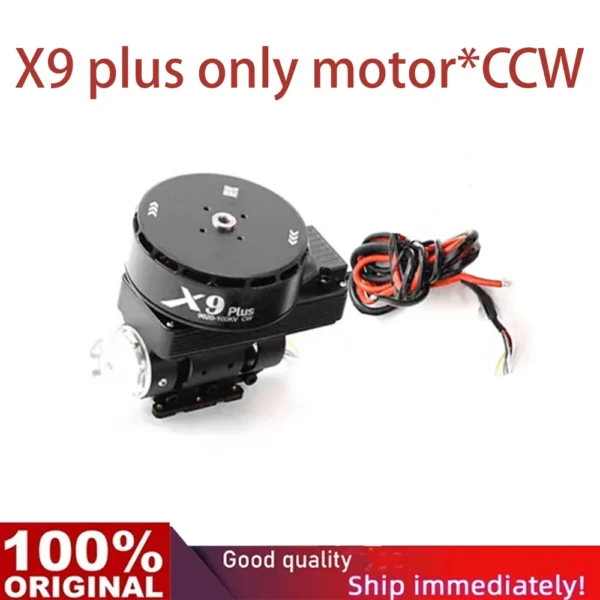

Hobbywing Brand-new X9 Plus 14S Power System Maximum Load 15kg for DIY 20L/25L Multirotor Agricultural Spraying Drone
$171.00
X9 Plus-12-14S Technical Parameter Maximum pulling force: 26.5kg/shaft (53.6V, sea level) Recommended take-off weight: 11-13kg/axis (sea level) Recommended
