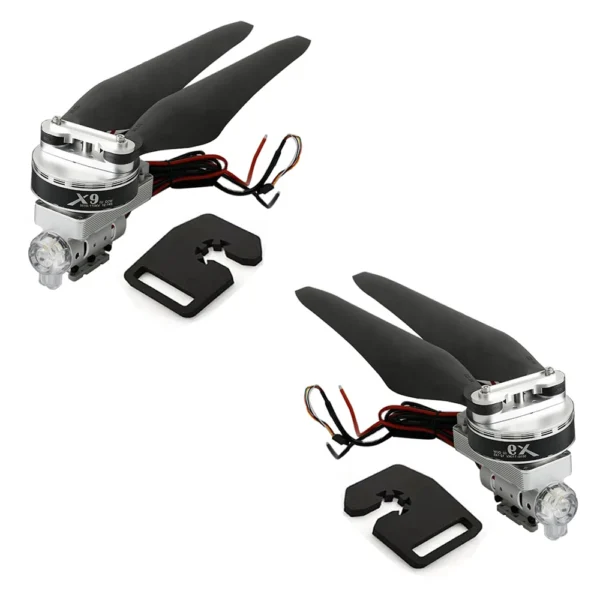

Hobbywing X9 Power System 9616 110KV 12-14S For 10L16L/22L Agricultural Motor Unmanned Aerial Vehicle, With ESC+Propeller

Manual Video Spare Parts Parameter details Maximum pulling force: 21.5KG/axis Recommended battery: 12S lipo Recommended takeoff weight (single axis): 7.0-9.5KG Weight (including propeller) 1450g Dimensions: 151.2×133.3mm Motor Stator size: 96x16mm KV value: 110rpm/V Internal resistance: 0.031ΩBE Maximum current: 100A Motor outer diameter: Φ103.5mm Paddle clamp installation size: Φ25mm-4xM3; Φ31mm-4xM3 Bearing: imported ball bearing (waterproof) Applicable carbon tube outer diameter: 40mm ESC Model: X-rotor/120A-FOC Battery: 12-14S lipo PWM input signal level: 3.3V/5V Working pulse width: 1100μs-1940μs (curing, calibration is not supported) Maximum allowable voltage: 52.2V Maximum allowable current (continuous): 120A Maximum allowable peak current (3 seconds): 150A BEC: none propeller: Diameter / pitch: 34×11 inch
