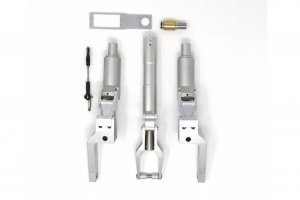

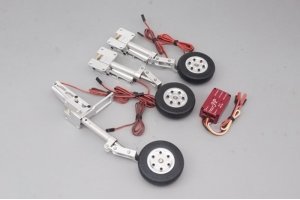

JP Hobby ER-010 / 120 Tricycle Full Set with Brakes (Taft Hobby Futura 1.4m) + Controller

Manual Video Spare Parts Electric Retract ER-010/120 > Model Weight: until 12kg (10kg for ER-010 oleo struts) > Struts diameter: 12mm (adapter 10mm) > Angle: 3x 90 degrees > Rotation direction: 3x Inside (jack side) > Mounting: 3x Low > Wheels: 2x 60mm (with brakes) + 1x 50mm Serial ER-010, JP Hobby ER-120 (12kg) Mounting diameter (mm): 12 Strut(s) Diameter(s) (mm): 12 Wheel(s) axle(s) diameter(s) (mm) 5mm (Main) – 4mm (Front) Weight (gr): 675 gr Max weight Up to 12kg Torque 12kg/cm Rotation direction Inside (jack side) Working voltage (Volts): 5 to 8.4v (2s LiPo recommended) Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts Material Aluminium, Rubber Mounting Low Specifications Materials: Aluminium Suspension: mechanical Wheels: ball bearings mounted For planes up to 12kg (10kg for ER-010 oleo struts) Linkage for Outward/Return cable control (steel cable not included) Technical Specifications Struts diameter: 12mm (adapter 10mm) Main gears wheels diameter: 60mm Gears wheels axle diameter: 5mm Nose gear wheel diameter: 50mm Nose gear axle diameter: 4mm Weight: 675g (for the complete set including the 3 struts, 3 retracts, wheels and the controller) Dimensions: for detailed dimensions, please refer to the pictures Retracts working voltage: 5-8.4V (2S LiPo) Brakes working voltage: 7.2-30V Content 2x Scale metal struts for main landing gear equiped with 60mm wheels & brakes system 1x Scale metal strut for nose gear equiped with 50mm wheel and linkage 3x Electric Retracts JP Hobby ER-010-120 unit 10/12mm (12kg/Low/Inside) 1x JP Hobby ER-120 V1 Version All Integrated Controller Retract box (doors opened when the gear is down) Requires 2 cells battery
